May 2010
QSD2030
Plastic Silicon Photodiode
Features
■ PIN photodiode
■ Package type: T-1 3/4 (5mm lens diameter)
■ Wide reception angle, 40°
■ Package material and color: clear epoxy

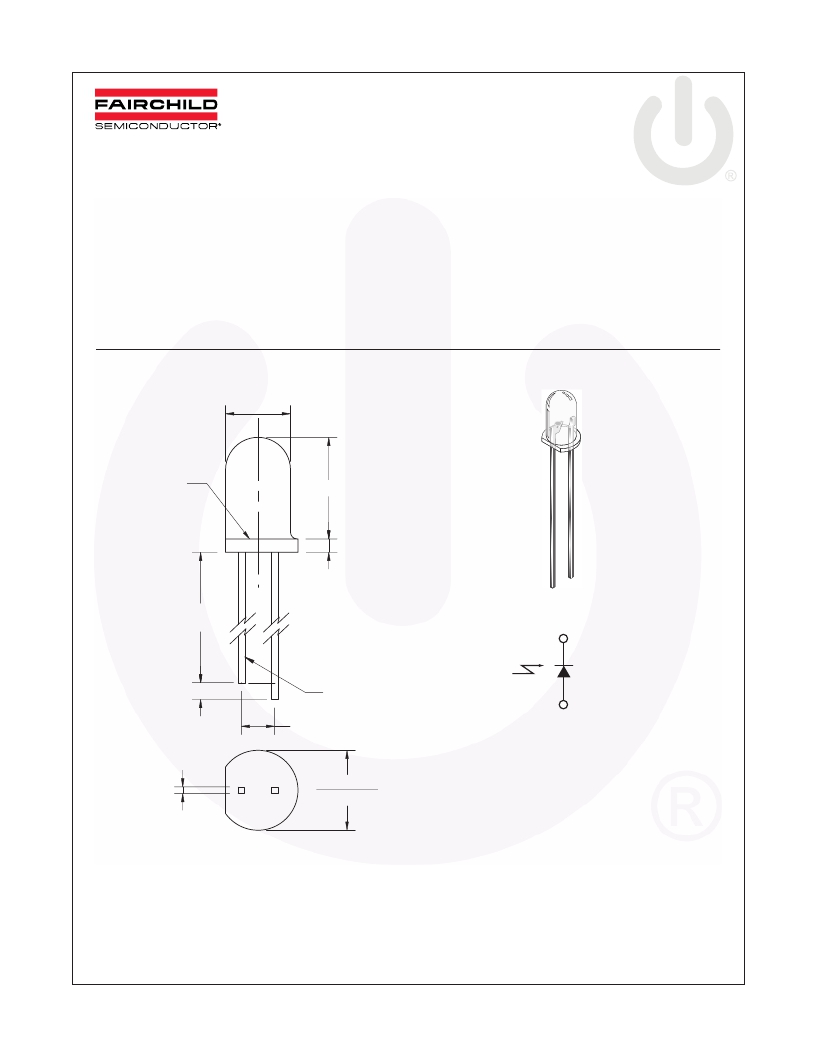

Package Dimensions
0.195 (4.95)
REFERENCE
■ High sensitivity
■ Peak sensitivity λ = 880nm
■ Radiant sensitive area: 1.245mm x 1.245mm
SURFACE
0.800 (20.3)
MIN
0.050 (1.25)
0.305 (7.75)
0.040 (1.02)
NOM
CATHODE
Schematic
CATHODE
ANODE
0.100 (2.54)
NOM
0.240 (6.10)
0.215 (5.45)
0.020 (0.51)
SQ. (2X)
Notes:
1. Dimensions for all drawings are in inches (mm).
2. Tolerance of ±0.010 (0.25) on all non-nominal dimensions unless otherwise specified.
?2010 Fairchild Semiconductor Corporation
QSD2030 Rev. 1.1.1
www.fairchildsemi.com
